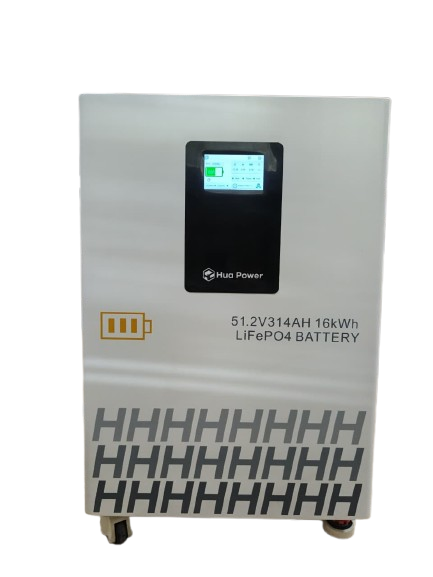

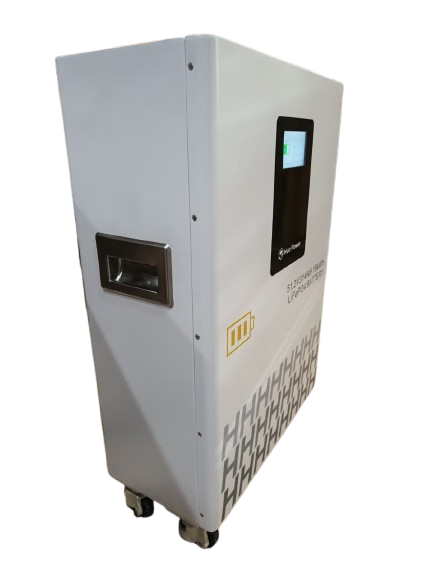

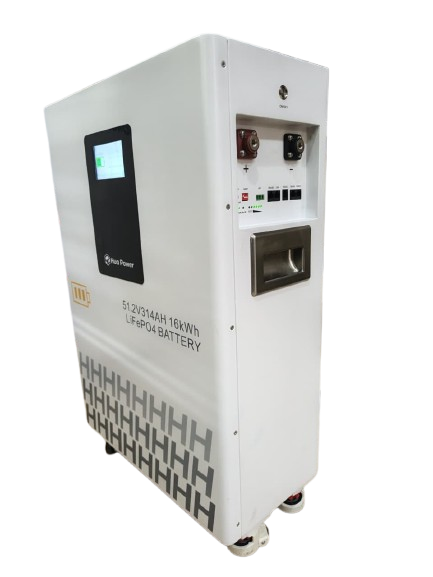

HUA POWER 51.2V-314Ah FLOOR STAND LITHIUM BATTERY
Original price was: ₨ 640,000.₨ 600,000Current price is: ₨ 600,000.
Hua Power’s 51.2V 314Ah LiFePOâ‚„ Floor-Stand Battery offers safe, long-lasting energy storage with up to 8000 cycles, a smart JINYU BMS, LISHIN cells, a Color Touch Screen, and Wi-Fi/Bluetooth/RS232/RS485/CAN/Wi-Fi communication. Ideal for solar and backup systems, backed by a 10-year warranty.
| Specification | Details |
|---|---|
| Product Type | Residential ESS (Energy Storage System) |
| Model | HCRESS2202 |
| Battery Type | Lithium LiFePOâ‚„ (Lithium Iron Phosphate) |
| Installation Type | Floor Stand |
| Rated Battery Energy | 16,179.2 Wh (16.18 kWh) |
| Rated Capacity | 316 Ah |
| Rated Voltage | 51.2 V |
| Battery Voltage Range | 43.2 V – 57.6 V |
| Standard Charge Current | 80 A |
| Maximum Continuous Charge Current | 158 A |
| Standard Discharge Current | 80 A |
| Maximum Continuous Discharge Current | 158 A |
| Battery Cell | LISHIN 3.2V 316Ah (0.5C Rate) |
| Cycle Life | >8000 Cycles @ 80% DOD (0.5C, 25°C) |
| Round Trip Efficiency | >96% |
| Display | 5-inch Color Touch Screen |
| Bluetooth Connectivity | Supported |
| Wi-Fi Connectivity | Supported |
| Communication | RS485 / CAN |
| Battery Scalability | Up to 15 Units in Parallel |
| Protection Functions | Overload, Over Temperature, Short Circuit Protection |
| Cooling Method | Natural Cooling |
| Housing Material | Metal Shell |
| Charging Temperature | 0°C to 60°C |
| Discharging Temperature | -30°C to 60°C |
| Storage Temperature | 0°C to 35°C (1 Year)-20°C to 45°C (1 Month) |
| Protection Rating | IP20 (Indoor) / IP54 (Outdoor) |
| Operating Altitude | <2000 m |
| Operating Humidity | <95% RH |
| Life Design | 10 Years |
| Warranty | 05 Years |
| Certifications | CE, UN38.3, MSDS |
| Dimensions (W × H × D) | 480 × 840 × 235 mm / 500 × 840 × 235 mm |
| Weight | 125 kg |
